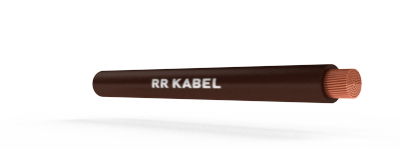

H05V-K & H07V-K

RR Kabel

Cable designed for internal wiring in switch control, relay and instrumentation panels of power switchgear

Application

Cable designed for internal wiring in switch control, relay and instrumentation panels of power switchgear and for purposes such as Stationary, static appliances, internal connectors in rectifier equipment, motor starters and controllers.

Standard

DIN EN 50525-2-31, VDE 0285-525-2-31, BS EN 50525-2-31.

Technical Data

Voltage Rating : 0.5 to 1 mm² – 300 / 500V, 1.5 to 240 mm² – 450 / 750V
Temperature Range : -30°C to +70°C
Minimum Bending Radius : -
Cable diameter ≤ 8 mm : 4 x outer diameter
Approx. diameter > 8 to 12 mm : 5 x outer diameter
Approx. diameter > 12 mm : 6 x outer diameter
Test Voltage : 2500V

Cable Construction

Conductor Class 5 flexible plain / metal coated stranded according to EN 60228.
Insulation PVC (Polyvinyl chloride) TI1 to BS EN 50363- 3.

Properties

PVC self-extinguishing and flame retardant according to EN 60332-1-2.

Cable Design Parameters

Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the colour required:
01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – green/yellow, 07 – white, 08 – violet, 09 – brown, 10 – orange, 11 – pink, 12 – grey.
By adding the suffix (in place of ‘c’) for the conductor type required: 0 = Annealed Bare Copper (ABC), 1 = Annealed Tinned Copper (ATC)

Dimensions

  Nominal CrossSectional Area (Sq. mm) Nominal Thickness of Insulation (mm) Mean Overall Diameter Approx. Cable Weight (kg/km)
Lower Limit (mm) Upper Limit (mm)
-H05VK 02020101xx1c 0.5 0.6 2.1 2.5 9
02020102xx1c 0.75 0.6 2.2 2.7 12
02020103xx1c 1.0 0.6 2.4 2.8 15
-H07VK 02020104xx1c 1.5 0.7 2.8 3.4 21
02020105xx1c 2.5 0.8 3.4 4.1 33
02020106xx1c 4 0.8 3.9 4.8 47
02020107xx1c 6 0.8 4.4 5.3 66
02020108xx1c 10 1.0 5.7 6.8 112
02020109xx1c 16 1.0 6.7 8.1 170
02020110xx1c 25 1.2 8.4 10.2 261
02020110xx1c 25 1.2 8.4 10.2 261
02020111xx1c 35 1.2 9.7 11.7 358
02020112xx1c 50 1.4 11.5 13.9 510
02020113xx1c 70 1.4 13.2 16.0 927
02020114xx1c 95 1.6 15.1 18.2 510
02020115xx1c 120 1.6 16.7 20.2 1170
02020116xx1c 150 1.8 18.6 22.5 1459
02020117xx1c 185 2.0 20.6 24.9 1776
02020118xx1c 240 2.2 23.5 28.4 2333
