Conductors
Plain annealed copper conductor
Insulation Colour
Grey
Temperature Rating
-15 to +70° C
Standards
Flame propagation to BS EN 50265
Insulation

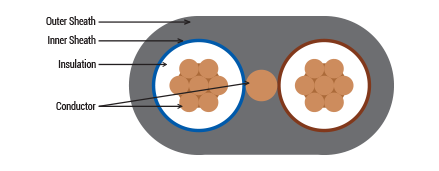

PVC insulated one, two or three cores laid flat with an uninsulated circuit protective conductor and PVC sheathed.
Ref 6241 /2/3Y 300/500 V to Bs6004
Minimum Bending Radius
Upto 10 mm : 3 x Overall diameter.
Above 25 mm : 6 x Overall diameter.
Dimensions
CCC
Code | Conductor
Size
Sq. mm | Stranding
(mm) | No. of
Cores | CPC
Size
Sq. mm | Weight
(Kg/Km) | Overall
Diameter
(mm) |
| 6241Y1BR |
1.0 |
1/1.13 |
1 |
1.0 |
49 |
4.15 X 5.40 |
| 6241Y1/5BR |
1.5 |
1/1.37 |
1 |
1.0 |
51 |
4.65 X 5.80 |
| 6242Y1 |
1.0 |
1/1.13 |
2 |
1.0 |
69 |
4.10 X 8.65 |
| 6242Y1/5 |
1.5 |
1/1.38 |
2 |
1.0 |
85 |
4.55 X 8.80 |
| 6242Y1/5BRBR |
1.5 |
1/1.38 |
2 |
1.0 |
85 |
4.55 X 8.80 |
| 6242Y2/5 |
2.5 |
1/1.77 |
2 |
1.5 |
120 |
5.40 X 10.50 |
| 6242Y4 |
4.0 |
7/0.85 |
2 |
1.5 |
175 |
6.10 X 12.00 |
| 6242Y6 |
6.0 |
7/1.04 |
2 |
2.5 |
240 |
6.90 X 13.80 |
| 6242Y10 |
10.0 |
7/1.35 |
2 |
4.0 |
390 |
8.40 X 18.50 |
| 6242Y16 |
16.0 |
7/1.70 |
2 |
6.0 |
560 |
9.70 X 20.60 |
| 6243Y1 |
1.0 |
1/1.13 |
3 |
1.0 |
92 |
4.60 X 10.20 |
| 6243Y1/5 |
1.5 |
1/1.37 |
3 |
1.0 |
115 |
4.75 X 11.45 |
| 6243Y2/5 |
2.5 |
1/1.77 |
3 |
1.5 |
170 |
5.45 X 13.40 |
