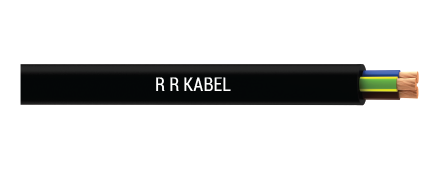

Conductor
Plain annealed copper flexible stranded, Class 5 Circular conductor to BS EN 60228
Temperature Rating
-15° C to 90° C (1 05° C for 15000 Hrs)
Insulation
PVC insulation complying with BS 50363-3, requirements of type Ti3
Outer Sheath
PVC insulation complying with BS 50363-4-1 requirements of type Tm3
Application
Suitable for use in high temperature zones, Suitable for internal wiring and supply cords to electrical apparatus
Standards
BS 6500
Harmonised Code Designation
H05V2V2-F
Minimum Bending Radius
6 X Cable Diameter
Sheath Color
Normally White, but other colours available on request
Dimensions
No. of Cores x
Cross Sectional area
(mm) as | Max
Strand Dia.
(mm) as | Radial Thickness
of Insulation
(mm) as | Radial Thickness
of Sheath
(mm) | Mean Overall
Diameter
(mm) | Approx
Weight
(Kg/Km) |
| H05V2V2-F |
| 2 x 0.75 |
0.21 |
0.6 |
0.8 |
6.3 |
53 |
| 3G 0.75 |
0.21 |
0.6 |
0.8 |
6.6 |
58 |
| 4G 0.75 |
0.21 |
0.6 |
0.8 |
7.3 |
70 |
| 5G 0.75 |
0.21 |
0.6 |
0.9 |
8.1 |
85 |
| 2 x 1 |
0.21 |
0.6 |
0.8 |
6.6 |
60 |
| 3G 1 |
0.21 |
0.6 |
0.8 |
7.0 |
69 |
| 4G 1 |
0.21 |
0.6 |
0.9 |
7.9 |
86 |
| 5G 1 |
0.21 |
0.6 |
0.9 |
8.5 |
100 |
| 2 x 1.5 |
0.26 |
0.7 |
0.8 |
7.6 |
81 |
| 3G 1.5 |
0.26 |
0.7 |
0.9 |
8.2 |
96 |
| 4G 1.5 |
0.26 |
0.7 |
1.0 |
9.3 |
121 |
| 5G 1.5 |
0.26 |
0.7 |
1.1 |
10.3 |
147 |
| 2 x 2.5 |
0.26 |
0.8 |
1.0 |
9.0 |
121 |
| 3 x 2.5 |
0.26 |
0.8 |
1.1 |
9.7 |
144 |
| 4G 2.5 |
0.26 |
0.8 |
1.1 |
10.7 |
176 |
| 5G 2.5 |
0.26 |
0.8 |
1.2 |
11.8 |
213 |
| 2 x 4 |
0.31 |
0.8 |
1.10 |
10.4 |
170 |
| 3G 4 |
0.31 |
0.8 |
1.20 |
11.0 |
210 |
| 4G 4 |
0.31 |
0.8 |
1.20 |
12.3 |
270 |
| 5G 4 |
0.31 |
0.8 |
1.40 |
13.8 |
340 |
