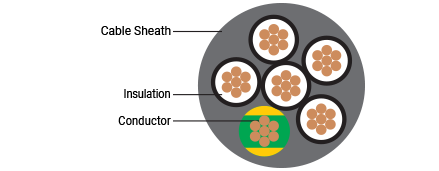

Conductor
Plain annealed class 5 copper flexible stranded circular conductor to BS EN 60228:2005 (earlier BS 6360)
Outer Sheath
PVC insulation complying with BS EN 50363-3 requirements for type TI 2
Voltage Rating
300/500 V
Application
Used as interconnecting cable for measuring, controlling or regulation in control equipment.
Suitable for fixed installation or for flexible use in conditions of light mechanical stress.
Insulation
PVC insulation complying with BS 7655 requirements of type Tm2
Sheath Color
Grey RAL 7001
Temperature Rating
-15° C TO +70° C
Also available with Halogen Free (LSOH) insulation & sheath.
Dimensions
|
Size Refrence
|
Number of Conductors x Section (Sq. mm)
|
Cable Outer Diameter (mm)/Nominal
|
Weight Approx
(kg/km)
|
|
YSLY-OZ 2x0.5
|
2x0.5
|
4.60
|
32
|
|
YSLY-JZ 3G0.5
|
3G0.5
|
4.90
|
40
|
|
YSLY-JZ 4G0.5
|
4G0.5
|
5.30
|
48
|
|
YSLY-JZ 5G0.5
|
5G0.5
|
5.70
|
57
|
|
YSLY-JZ 7G0.5
|
7G0.5
|
6.40
|
74
|
|
YSLY-JZ 12G0.5
|
12G0.5
|
8.50
|
129
|
|
YSLY-JZ 18G0.5
|
18G0.5
|
10.0
|
184
|
|
YSLY-JZ 19G0.5
|
19G0.5
|
10.0
|
187
|
|
YSLY-JZ 25G0.5
|
25G0.5
|
12.30
|
270
|
|
YSLY-JZ 27G0.5
|
27G0.5
|
12.25
|
275
|
|
YSLY-JZ 30G0.5
|
30G0.5
|
12.70
|
300
|
|
YSLY-JZ 34G0.5
|
34G0.5
|
13.30
|
333
|
|
YSLY-JZ 40G0.5
|
40G0.5
|
14.50
|
394
|
Note: Also available with Halogen Free (LSOH) insulation & sheath.
|
Size Refrence
|
Number of Conductors x Section (Sq. mm)
|
Cable Outer Diameter (mm)/Nominal
|
Weight Approx
(kg/km)
|
|
YSLY-OZ 2x0.75
|
2x0.75
|
5.00
|
40
|
|
YSLY-JZ 3G0.75
|
3G0.75
|
5.30
|
50
|
|
YSLY-JZ 4G0.75
|
4G0.75
|
5.70
|
60
|
|
YSLY-JZ 5G0.75
|
5G0.75
|
6.50
|
77
|
|
YSLY-JZ 7G0.75
|
7G0.75
|
7.00
|
96
|
|
YSLY-JZ 12G0.75
|
12G0.75
|
9.50
|
172
|
|
YSLY-JZ 18G0.75
|
18G0.75
|
11.20
|
247
|
|
YSLY-JZ 19G0.75
|
19G0.75
|
11.20
|
253
|
|
YSLY-JZ 25G0.75
|
25G0.75
|
13.70
|
358
|
|
YSLY-JZ 27G0.75
|
27G0.75
|
13.70
|
370
|
|
YSLY-JZ 30G0.75
|
30G0.75
|
14.10
|
400
|
|
YSLY-JZ 34G0.75
|
34G0.75
|
14.70
|
442
|
|
YSLY-JZ 42G0.75
|
42G0.75
|
16.00
|
534
|
|
YSLY-JZ 50G0.75
|
50G0.75
|
17.90
|
653
|
|
YSLY-JZ 61G0.75
|
61G0.75
|
19.80
|
798
|
|
YSLY-OZ 2x1
|
2x1
|
5.40
|
49
|
|
YSLY-JZ 3G1
|
3G1
|
5.70
|
60
|
|
YSLY-JZ 4G1
|
4G1
|
6.40
|
78
|
|
YSLY-JZ 5G1
|
5G1
|
7.00
|
94
|
|
YSLY-JZ 7G1
|
7G1
|
7.80
|
123
|
