Technical Data
Standard : Based on VDE 0812
Nominal Voltage (Not for power application) : 0.14 Sq. mm = 350 V; >/= 0.25 Sq. mm = 500 V
Insulation Resistance : Min. 20 GΩx cm
Temperature Range : Flexing -5°C to +70°C. Fixed installation -30°C to +70°C
Minimum Bending Radius : Flexing 15 x cable Φ. Fixed installation 6 x cable Φ
Test Voltage : 0.14 Sq. mm : 1200 V; > 0.14 Sq. mm : 1500 V.
Capacitance (approx. Value)
Up to 0.5 Sq. mm
C/C =120 nF/km. C/S =160 nF/km.
0.75 Sq. mm to 1.5 Sq. mm
C/C =160 nF/km. C/S = 240 nF/km.
Inductance : Approx. 0.65 mH/km

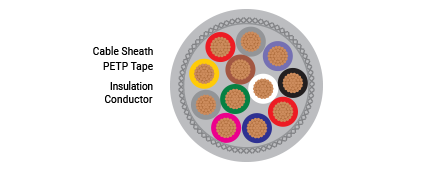

Cable Construction
Bare copper, fine wire conductors, to DIN/BS EN 60228 c1.5.
Special PVC core insulation TI2, to EN 50363-3.
Conductor make-up for
0.14 Sq. mm = 18x 0.1 mm.
0.25 Sq. mm = 14x 0.15 mm.
0.34 Sq. mm = 19 x 0.15 mm.
Colour coded to DIN 47100.
Cores stranded in layers with optimal lay-length.
Tinned copper braided screen, approx 85% coverage.
Special PVC outer sheath TM2, to EN 50363-4.1.
Colour grey (RAL 7032).
Properties
Overall braid minimizes electrical interference.
Flame retardant to EN 60332-1-2.
Smaller dimension screened cables are suitable for use in computer systems, instrumentation technology office equipment, balance, etc.
Cable Design Parameters
|
Part Number
|
No. of Cores & Nominal Cross Sectional Area (Sq. mm)
|
Approx. Cable Diameter (mm)
|
Approx. Copper Weight (kg/km)
|
Approx. Cable Weight (kg/km)
|
|
50300201014
|
2 x 0.14
|
4
|
9.38
|
14.2
|
|
50300301014
|
3 x 0.14
|
4.1
|
10.73
|
15.7
|
|
50300401014
|
4 x 0.14
|
4.4
|
12.52
|
17.9
|
|
50300501014
|
5 x 0.14
|
4.6
|
15
|
21
|
|
50300701014
|
7 x 0.14
|
5
|
18.24
|
24.9
|
|
50300801014
|
8 x 0.14
|
5.4
|
20.8
|
28.2
|
|
50301001014
|
10 x 0.14
|
6
|
25.05
|
33.6
|
|
50301201014
|
12 x 0.14
|
6.2
|
28.05
|
36.9
|
|
50301401014
|
14 x 0.14
|
6.4
|
31.45
|
40.8
|
|
50301501014
|
15 x 0.14
|
6.7
|
33.5
|
43.5
|
|
50301601014
|
16 x 0.14
|
6.7
|
34.66
|
44.7
|
|
50301801014
|
18 x 0.14
|
7
|
38.41
|
49
|
|
50302001014
|
20 x 0.14
|
7.5
|
42.18
|
54
|
|
50302101014
|
21 x 0.14
|
7.5
|
43.39
|
55.2
|
|
50302501014
|
25 x 0.14
|
8.2
|
51.24
|
64.5
|
|
50302801014
|
28 x 0.14
|
8.6
|
55.66
|
69.8
|
|
50303001014
|
30 x 0.14
|
8.6
|
58.27
|
72.4
|
|
50303201014
|
32 x 0.14
|
8.9
|
61.82
|
76.6
|
|
50303601014
|
36 x 0.14
|
9.2
|
67.85
|
83.5
|
|
50304001014
|
40 x 0.14
|
9.5
|
74.06
|
90.3
|
|
50304401014
|
44 x 0.14
|
10.2
|
81.35
|
99.2
|
|
50305001014
|
50 x 0.14
|
10.4
|
89.63
|
107.9
|
|
50300201025
|
2 x 0.25
|
4.9
|
14.92
|
22.4
|
|
50300301025
|
3 x 0.25
|
4.9
|
15.81
|
23.4
|
|
50300401025
|
4 x 0.25
|
5.3
|
19.47
|
27.9
|
|
50300501025
|
5 x 0.25
|
5.7
|
22.48
|
31.9
|
|
50300701025
|
7 x 0.25
|
6.2
|
28.32
|
38.8
|
|
50300801025
|
8 x 0.25
|
6.8
|
32.23
|
44.1
|
|
50301001025
|
10 x 0.25
|
7.6
|
39.1
|
52.9
|
|
50301201025
|
12 x 0.25
|
7.8
|
44.27
|
58.6
|
|
50301401025
|
14 x 0.25
|
8.1
|
50.02
|
65.2
|
|
50301501025
|
15 x 0.25
|
8.6
|
53.1
|
69.3
|
|
50301601025
|
16 x 0.25
|
8.6
|
55.36
|
71.6
|
|
50301801025
|
18 x 0.25
|
9
|
61.57
|
78.9
|
|
50302001025
|
20 x 0.25
|
9.6
|
67.53
|
86.6
|
|
50302101025
|
21 x 0.25
|
9.6
|
69.81
|
88.9
|
|
50302501025
|
25 x 0.25
|
10.5
|
82.36
|
104
|
|
50302801025
|
28 x 0.25
|
11.1
|
90.24
|
113.4
|
|
50303001025
|
30 x 0.25
|
11.1
|
94.82
|
118
|
|
50303201025
|
32 x 0.25
|
11.5
|
100.42
|
124.7
|
|
50303601025
|
36 x 0.25
|
12
|
109.27
|
134.9
|
|
50304001025
|
40 x 0.25
|
12.4
|
121.11
|
147.9
|
|
50305001025
|
50 x 0.25
|
13.6
|
147.73
|
177.9
|
|
50306101025
|
61 x 0.25
|
14.8
|
176.02
|
209.6
|
|
50300201034
|
2 x 0.34
|
5
|
15.27
|
22.9
|
|
50300301034
|
3 x 0.34
|
5
|
18.52
|
26.3
|
|
50300401034
|
4 x 0.34
|
5.4
|
22.72
|
31.4
|
|
50300501034
|
5 x 0.34
|
5.8
|
26.7
|
36.3
|
|
50300701034
|
7 x 0.34
|
6.3
|
34.45
|
45.2
|
|
50300801034
|
8 x 0.34
|
6.9
|
39.2
|
51.4
|
|
50301001034
|
10 x 0.34
|
7.8
|
47.64
|
61.8
|
|
50301201034
|
12 x 0.34
|
8
|
54.48
|
69.2
|
|
50301401034
|
14 x 0.34
|
8.4
|
61.93
|
77.5
|
|
50301501034
|
15 x 0.34
|
8.8
|
65.9
|
82.6
|
|
50301601034
|
16 x 0.34
|
8.8
|
68.97
|
85.6
|
|
50301801034
|
18 x 0.34
|
9.2
|
77.21
|
95
|
|
50302001034
|
20 x 0.34
|
9.8
|
84.65
|
104.2
|
|
50302101034
|
21 x 0.34
|
9.8
|
87.76
|
107.3
|
|
50302501034
|
25 x 0.34
|
10.8
|
102.99
|
125.3
|
|
50302801034
|
28 x 0.34
|
11.4
|
113.92
|
137.7
|
|
50303001034
|
30 x 0.34
|
11.4
|
120.13
|
143.9
|
|
50303201034
|
32 x 0.34
|
11.9
|
127.76
|
152.7
|
|
50303601034
|
36 x 0.34
|
12.4
|
139.2
|
165.5
|
|
50304001034
|
40 x 0.34
|
12.8
|
155.2
|
182.7
|
|
50305001034
|
50 x 0.34
|
14.1
|
189.54
|
220.7
|
|
50300201050
|
2 x 0.5
|
5.8
|
20.13
|
30.6
|
|
50300301050
|
3 x 0.5
|
5.8
|
25.08
|
35.8
|
|
50300401050
|
4 x 0.5
|
6.3
|
30.85
|
42.8
|
|
50300501050
|
5 x 0.5
|
6.8
|
36.84
|
50.1
|
|
50300601050
|
6 x 0.5
|
7.3
|
43.13
|
57.8
|
|
50300701050
|
7 x 0.5
|
7.4
|
47.71
|
62.6
|
|
50300801050
|
8 x 0.5
|
8.1
|
54.24
|
71.1
|
|
50301001050
|
10 x 0.5
|
9.1
|
66.98
|
86.6
|
|
50301201050
|
12 x 0.5
|
9.4
|
76.6
|
97.1
|
|
50301401050
|
14 x 0.5
|
9.9
|
87.26
|
109
|
|
50301601050
|
16 x 0.5
|
10.4
|
97.91
|
121.1
|
|
50301801050
|
18 x 0.5
|
10.9
|
109.29
|
134.1
|
|
50301901050
|
19 x 0.5
|
10.9
|
113.91
|
138.7
|
|
50302001050
|
20 x 0.5
|
11.8
|
120.19
|
148.8
|
|
50302401050
|
24 x 0.5
|
13
|
142.32
|
174.8
|
|
50302501050
|
25 x 0.5
|
13.1
|
146.98
|
179.5
|
|
50302701050
|
27 x 0.5
|
13.3
|
156.84
|
190.2
|
|
50303001050
|
30 x 0.5
|
13.8
|
172.11
|
206.9
|
|
50300201075
|
2 x 0.75
|
6.4
|
25.98
|
38.5
|
|
50300301075
|
3 x 0.75
|
6.5
|
32.85
|
45.6
|
|
50300401075
|
4 x 0.75
|
7
|
41.37
|
55.6
|
|
50300501075
|
5 x 0.75
|
7.5
|
49.35
|
65.1
|
|
50300701075
|
7 x 0.75
|
8.2
|
64.96
|
82.7
|
|
50300801075
|
8 x 0.75
|
9
|
74.16
|
94.2
|
|
50301001075
|
10 x 0.75
|
10.1
|
91.35
|
114.6
|
|
50301201075
|
12 x 0.75
|
10.4
|
106.17
|
130.4
|
|
50301801075
|
18 x 0.75
|
12
|
153.48
|
182.8
|
|
50302501075
|
25 x 0.75
|
14
|
207.72
|
243.5
|
|
50303001075
|
30 x 0.75
|
14.8
|
244.37
|
282.6
|
|
50300200001
|
2 x 1
|
7
|
31.67
|
46.6
|
|
50300300001
|
3 x 1
|
7
|
41.39
|
56.6
|
|
50300400001
|
4 x 1
|
7.6
|
51.91
|
68.9
|
|
50300500001
|
5 x 1
|
8.2
|
62.76
|
81.7
|
|
50300700001
|
7 x 1
|
9
|
83.12
|
104.4
|
|
50301000001
|
10 x 1
|
11.1
|
117.31
|
145.4
|
|
50301200001
|
12 x 1
|
11.5
|
136.9
|
166.2
|
|
50301800001
|
18 x 1
|
13.3
|
199.05
|
234.6
|
|
50302500001
|
25 x 1
|
15.6
|
270.56
|
314
|
|
50300201105
|
2 x 1.5
|
7.7
|
42.16
|
60.4
|
|
50300301105
|
3 x 1.5
|
7.8
|
55.88
|
74.5
|
|
50300401105
|
4 x 1.5
|
8.5
|
71.49
|
92.3
|
|
50300501105
|
5 x 1.5
|
9.2
|
86.5
|
109.6
|
|
50300601105
|
6 x 1.5
|
10
|
101.92
|
127.6
|
|
50300701105
|
7 x 1.5
|
10.1
|
115.53
|
141.6
|
|
50300801105
|
8 x 1.5
|
11.1
|
131.75
|
161.4
|
|
50301001105
|
10 x 1.5
|
12.5
|
163.84
|
198.4
|
|
50301201105
|
12 x 1.5
|
12.9
|
191.62
|
227.6
|
|
50301401105
|
14 x 1.5
|
13.5
|
220.6
|
258.9
|
|
50301601105
|
16 x 1.5
|
14.3
|
249.79
|
290.8
|
|
50301901105
|
19 x 1.5
|
15
|
294.69
|
338.5
|
|
50302401105
|
24 x 1.5
|
17.8
|
394.72
|
448.7
|
|
50302701105
|
27 x 1.5
|
18.2
|
437.24
|
492.7
|
|
50303701105
|
37 x 1.5
|
20.6
|
583.86
|
648.9
|
