Standards
UNE 21123-2, IEC 60502-1, EN 50265, IEC 60332-1

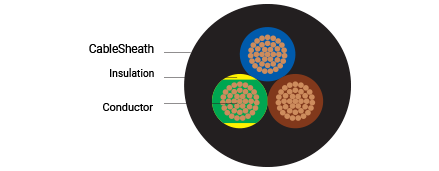

Conductor
Class 5 flexible plain to BS EN 60228:2005
Insulation
XLPE (Cross-Linked Polyethylene)
Voltage Rating
600/1000V
Core Identification
2 Cores : Blue, Brown
3 Cores including Earth Core : Blue, Brown, Green/Yellow
4 Cores including Earth Core : Brown, Black, Grey, Green/Yellow
5 Cores including Earth Core : Brown, Black, Grey, Green/Yellow Blue
Application
A flexible power and control cable designed for fixed applications Manufactured with flexible conductors in order to facilitate easy installations Suitable for the distribution of low voltage power, indoors and outdoors. The high flexibility of this cable makes it particularly suitable for difficult layouts and the ease of handling saves time during installation.
Sheathing
PVC (Polyvinyl Chloride) Type St2
Temperature Rating
-15°C to + 90°C
Minimum Bending Radius
5 x Overall diameter
Dimensions
|
No. of Cores x Nominal Cross Sectional Area Sq. mm
|
Nominal Thickness of Insulation mm
|
Nominal Overall Diameter mm
|
Nominal Weight Kg/Km
|
|
2 x 1.5
|
0.7
|
9.4
|
127
|
|
3 x 1.5
|
0.7
|
9.9
|
129
|
|
4 x 1.5
|
0.7
|
10.6
|
154
|
|
5 x 1.5
|
0.7
|
11.4
|
180
|
|
2 x 2.5
|
0.7
|
10.7
|
160
|
|
3 x 2.5
|
0.7
|
10.8
|
169
|
|
4 x 2.5
|
0.7
|
11.7
|
204
|
|
5 x 2.5
|
0.7
|
12.6
|
243
|
|
2 x 4.0
|
0.7
|
12.6
|
232
|
|
3 x 4.0
|
0.7
|
12.8
|
230
|
|
4 x 4.0
|
0.7
|
13
|
281
|
|
5 x 4.0
|
0.7
|
14.1
|
338
|
|
2 x 6.0
|
0.7
|
13.9
|
298
|
|
3 x 6.0
|
0.7
|
14.3
|
304
|
|
4 x 6.0
|
0.7
|
14.5
|
376
|
|
5 x 6.0
|
0.7
|
15.8
|
454
|
|
3 x 10.0
|
0.7
|
15.3
|
443
|
|
4 x 10.0
|
0.7
|
16.7
|
554
|
|
5 x 10.0
|
0.7
|
18.2
|
674
|
|
3 x 16.0
|
0.7
|
17.5
|
646
|
|
4 x 16.0
|
0.7
|
19.2
|
816
|
|
5 x 16.0
|
0.7
|
21
|
998
|
