TXL - Thin Wall Cross-Linked Polyolefin Insulated Cable
Application
These are thin walled insulated cables used in auto and motorcycle cables for automotive electric circuits, motorcycles and off-road vehicles.
Standard
In accordance to SAE J1128
Temperature Range (3000 Hrs)
-40°C to +125°C

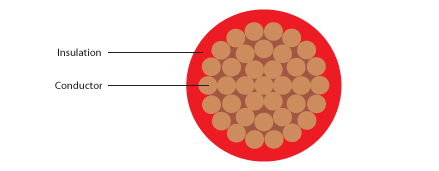

Cable Construction
Soft annealed electrolytic copper ASTM B3
Cross-linked polyethylene (PE) with heat resistant properties according to SAE J1128
Packing
Available in 100 mtrs. coil. Longer length available in spools or wooden drums.
Special Properties
High temperature resistant and flame retardant
Provides higher reliability in heat resistance than conventional general wires due to emission bridging
Cable Design Parameters
| No. of Cores x Nom. Cross-Section AWG | No. of Strands | Max. Strand Diameter mm | Nominal Conductor Diameter mm | Nominal Insulation Thickness mm | Overall Diameter mm |
| 22* |
7 |
0.26 |
0.78 |
0.4 |
1.6 |
| 20 |
7 |
0.32 |
0.96 |
0.4 |
1.6 |
| 20 |
19 |
0.19 |
0.95 |
0.4 |
1.8 |
| 18 |
16 |
0.26 |
1.22 |
0.4 |
2.0 |
| 18 |
19 |
0.23 |
1.12 |
0.4 |
2.0 |
| 16 |
19 |
0.29 |
1.45 |
0.4 |
2.3 |
| 14 |
19 |
0.36 |
1.80 |
0.4 |
2.6 |
| 12 |
19 |
0.45 |
2.25 |
0.46 |
3.2 |
| 10 |
19 |
0.58 |
2.98 |
0.51 |
4.0 |
| 10 |
104 |
0.25 |
2.90 |
0.51 |
4.0 |
| 8 |
19 |
0.72 |
3.60 |
0.56 |
4.8 |
| 8 |
50 |
0.45 |
3.67 |
0.56 |
4.8 |
| 6* |
37 |
0.72 |
5.10 |
0.70 |
6.5 |
| 6* |
133 |
0.36 |
4.80 |
0.70 |
6.2 |
*Not as per SAE J1128
