Power cables for energy supply are installed in open air, in underground, in water, indoors, in cable ducts

Application

Power cables for energy supply are installed in open air, in underground, in water, indoors, in cable ducts, power stations, for industry and distribution boards as well as in subscriber networks, where mechanical damages are not to be expected.

Technical Data

Power and control cable to IEC 60502-1
Temperature Range : Flexing - 5°C to + 50°C. Fixed installation -20°C to +70°C
Nominal Voltage : Uo/ U 0.6 / 1 kV
Test Voltage : 4 kV
Max. permissible tensile stress with cable grip for CU-conductor : 50 N/mm2
Minimum Bending Radius : For single core approx. 15 x cable ϕ. For multi core approx. 12 x cable ϕ.

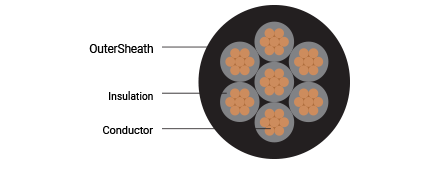

Cable Construction

Plain copper conductor, to DIN VDE 0295.
Cl. 1 or Cl. 2 solid or stranded type, BS 6360.
Cl. 1 or CI.2, IEC 60228 and HD 383.
PVC core insulation, DIV4 to HD 603.1.
Cores stranded concentrically.
Colour coded to DIN VDE 0293 - 308, 0276 part 603 or HD 186.
Core colour for 3 + 1/2 conductor.
J-type : gnyl (1/2) bn, bk, gy.
0-type : bu (1/2) bn, bk, gy.
PVC outer jacket, DMV5 to HD 603.1
Sheath Colour: Black.

Properties

Flame propagation test according to IEC 60332 -1 - 2.
Highest permissible voltage.
Direct current systems 1.8 kV.
Alternating current systems, single-phase systems 1.4 kV.
Both conductor insulated, single-phase systems 0.7 kV.
One conductor earthed, three-phase systems 1.2 kV with concentric conductor and a cross-section of 240 mm2 and above 3.6 kV.

Cable Design Parameters

Kindly complete the part numbers for these cables by adding the suffix (in place of 'xx') for the type required: 01 - J - Type, 02 - 0 – Type.

Part
Number

No. of Cores and
Nominal Cross-Section Area
(Sq. mm)

Approx.
Cable Diameter
(mm)

Approx.
Copper Weight
(kg/km)

Approx.
Weight Cable
(kg/km)

112500101xx1 1

1 x 4 re

6.5

34

80

112500102xx1 1

1 x 6 re

7.0

51

102

112500103xx1 1

1 x 10 re

7.9

86

147

112500104xx1 1

1 x 16 re

8.9

137

210

112500105xx1 1

1 x 25 rm

11.3

217

335

112500106xx1 1

1 x 35 rm

12.5

301

439

112500107xx1 1

1 x 50 rm

14.3

408

587

112500108xx1 1

1 x 70 rm

16.2

589

807

112500109xx1 1

1 x 95 rm

18.6

818

1100

112500110xxl 1

1 xl2Orm

20.3

1031

1357

112500111xx11

1 xl5Orm

22.4

1273

1665

112500112xxl 1

1 x185 rm

24.8

1592

2067

112500113xxl 1

1 x 240 rm

28.0

2093

2686

112500114xxl 1

1 x 300 rm

30.9

2626

3341

112500115xxl 1

1 x 400 rm

34.5

3357

4231

112500116xxl 1

1 x 500 rm

38.5

4311

5379

112500117xxl 1

1 x 630 rm

42.7

5576

6846

112500118xxl 1

2 x 1.5 re

10.5

26.1

156.1

112500119xxl 1

2 x 2.5 re

11.3

42.6

191.5

112500120xx1 1

2 x 4 re

13.1

68.5

268.5

112500121xx1 1

2 x 6 re

14.2

102.5

332.4

112500122xx1 1

2x 10 re

15.9

172.5

454.4

112500123xx1 1

2x 16 re

17.9

274.4

621.1

112500124xx1 1

2 x 25 rm

24.2

441.9

1089.2

112500125xx1 1

3 x 1.5 re

11.0

39.1

180

112500126xx1 1

3 x 2.5 re

11.9

63.9

225

112500127xx1 1

3 x 4 re

13.9

102.7

320

112500128xx1 1

3 x 6 re

15.0

153.7

403

112500129xx1 1

3x 10 re

16.9

258.7

564

112500130xx1 1

3x 16 re

19.0

411.6

785

112500131xx1 1

3x 25 rm

24.2

662.8

1270

112500132xx1 1

3x 35 snn

22.6

901.4

1382

112500133xx1 1

3 x 50 snn

25.7

1220.5

1829

112500134xx1 1

3 x 70 snn

28.7

1762.5

2487

112500135xx1 1

3x 95 snn

33.3

2447.4

3410

112500136xx1 1

3 x 120 sm

35.9

3087.2

4171

112500137xx11

3 x 150 sm

39.5

3809.3

5107

112500138xx11

3 x 185 sm

44.0

4766.4

6372

112500139xx1 1

3 x 240 sm

49.3

6264.6

8234

112500140xxl 1

4x1.5 re

11.8

52.2

214

112500141xx1 1

4 x 2.5 re

12.8

85.2

271

112500142xx1 1

4 x 4 re

15.0

136.9

390

112500143xx1 1

4 x 6 re

16.3

204.9

496

112500144xx1 1

4 x10re

18.4

344.9

701

112500145xx1 1

4 x16 re

20.7

548.9

986

112500146xx11

4x 25 rm

26.7

883.7

1604

112500147xx11

4x 35 sm

27.1

1201.9

1813

112500148xx11

4 x 50 sm

30.9

1627.4

2404

112500149xx11

4 x 70 sm

35.3

2350.0

3324

112500150xx1 1

4 x 95 sm

40.5

3263.2

4512

112500151xx1 1

4 x 120 sm

44.3

4116.3

5582

112500152xx1 1

4 x 150 sm

48.8

5079.0

6833

112500153xx1 1

4 x 185 sm

54.3

6355.2

8520

112500154xx11

4 x 240 sm

61.0

8352.7

11016

112500155xx11

5 x 1.5 re

12.7

65.2

251

112500156xx11

5 x 2.5 re

13.8

106.5

321

112500157xx11

5 x 4 re

16.3

171.1

467

112500158xx11

5x 6 re

17.7

256.2

597

112500159xx11

5 x10re

20.0

431.1

851

112500160xx11

5 x 16 re

22.7

686.1

1203

112500161xx1 1

5x 25 rm

29.3

1104.6

1966

112500162xx11

5x 35 rm

32.9

1532.6

2602

112500163xx11

5 x 50rm

37.9

2075.1

3482

112500164x)c1 1

7 x1.5 re

13.6

91.3

295

112500165xx1 1

7 x 2.5 re

14.9

149.1

384

112500166xx1 1

7 x 4 re

17.6

239.6

564

112500167xx1 1

7 x 6 re

19.2

358.6

731

112500168xx1 1

7 x10re

21.8

603.6

1058

112500169xx1 1

10 x 1.5 re

18.5

130.4

477

112500170xx11

10 x 2.5 re

18.4

213.0

543

112500171xxl 1

12 x 1.5 re

17.3

156.5

466

112500172xx11

12x2.5 re

19

255.5

616

112500173)0(11

14 x 1.5 re

18.1

182.6

524

112500174xx1 1

14 x 2.5 re

19.9

298.1

696

112500175)0(11

16x1.5 re

19

208.7

584

112500176xx11

16x2.5 re

20.9

340.7

779

112500177xx1 1

19 x 1.5 re

20

247.8

667

112500178xx11

19 x 2.5 re

22

404.6

895

112500179xx11

21 x1.5 re

21

273.9

731

112500180)0(11

21 x 2.5 re

23.2

447.2

983

112500181xxl 1

24 x 1.5 re

23.1

273.9

779

112500182xx11

24 x 2.5 re

25.6

511.1

1133

112500183xx1 1

30x1.5 re

24.4

391.2

999

112500184xx11

30 x 2.5 re

27

638.9

1354

112500185xx1 1

40x1.5 re

27.4

521.6

1282

112500186xx11

40 x 2.5 re

30.8

851.8

1782

112500187xx11

52 x 2.5 re

34.6

1107.4

2268

112500188xx11

61 x1.5 re

33.1

795.5

1905
